Heliport Inset light is always be installed at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.
It could be used as Aiming point light, perimeter light of FATO(Final approach and take-off areas), TLOF (Touchdown and lift-off areas), taxiway, runway, flight path Lighting, etc. The emitting color is green or yellow or white or blue.
| SPECIFICATIONS | Touchdown and Lift-off Area light |
| Light Characteristics | |
| Light Source | CREE Ultra high intensity LED |
| Available Colors | Green, White, Yellow, Blue, Red |
| Intensity(cd) | ≥100cd |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 110-240VAC, 48VDC, 24VDC or others |
| Power(W) | 7 |
| Physical Characteristics | |
| Body Material | Anodized Die-casting aluminum |
| Base Material | Painted aluminum |

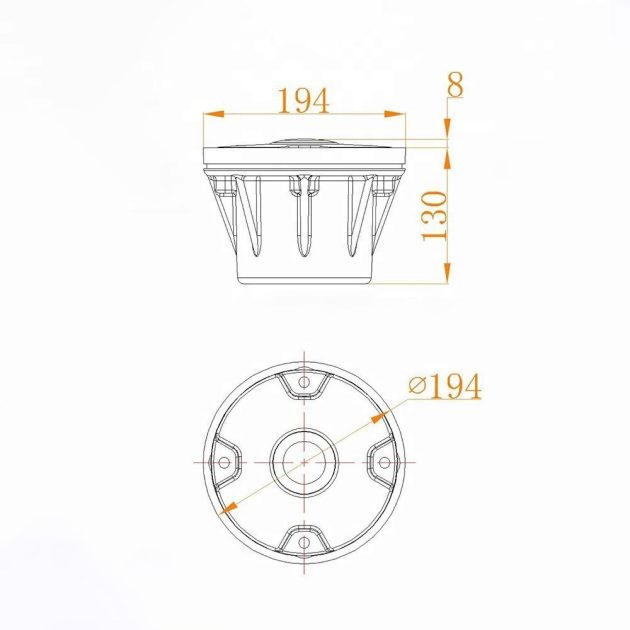

| Overall size(mm) | 194×194×138 |
| Installation size(mm) | 199×199×146 |
| Weight(kg) | 4.5 |
| Product Life Expectancy | Average 5 years
|
| Environmental Factors | |
| Ambient Temperature(℃)
-55℃~+70℃ |
-55~70 |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| ICAO | ICAO Annex 14 Volume ǁ Heliports 5.3 |
| Options Available | |
| Infrared LED compatible for NVG (Night | |
| Vision Goggles) | |
| Marine Treated | |
| VHF pilot to ground remote control
|
