$1.00
LED Light in the field of marine aid to
navigation around the world. Because of its selfcontained,
reliability and durability, it has also
become a perfect model for all kinds of warning
applications. It installs in minutes and requires no
maintenance or servicing for up to five years. It
complies with IALA-AISM’s requirements.
| Name : | Helipad Windcone |
| Sock material : | synthetic fabric |
| Frame material: | 304 stainless steel |
| Throat diameter: | 18 inches |
| Body length: | 60 inches |
| Colour: | orange with white strips |
| Product life expectancy: | average 5 years |
| Humodity : | 0~100% |
| Wind speed: | 80m/s |
| Waterproof | IP65 |
Compliance
ICAO Annex 14 Volume Heliports 5.1.1
FAA AC 150/5390-2B Heliport Design Guide
Features

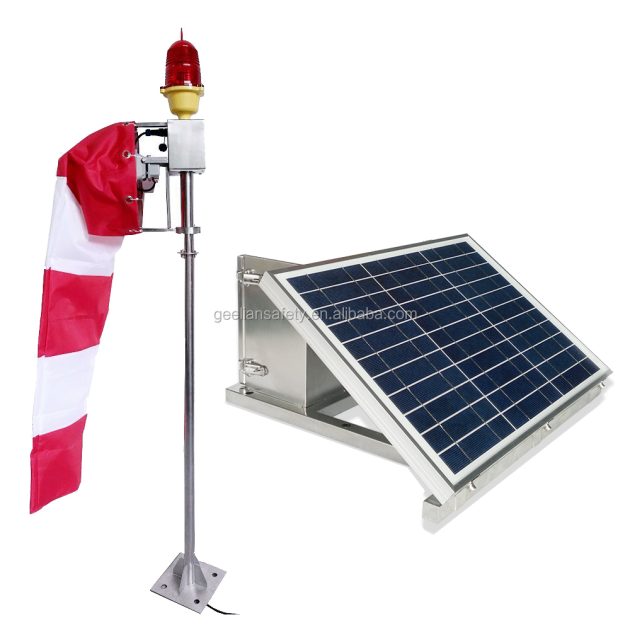

Power supply available in DC(12-48VDC) or AC(110-240VAC)
Pole is made of corrosion resistance and wind resistance stainless steel 304(SS316 is optional)

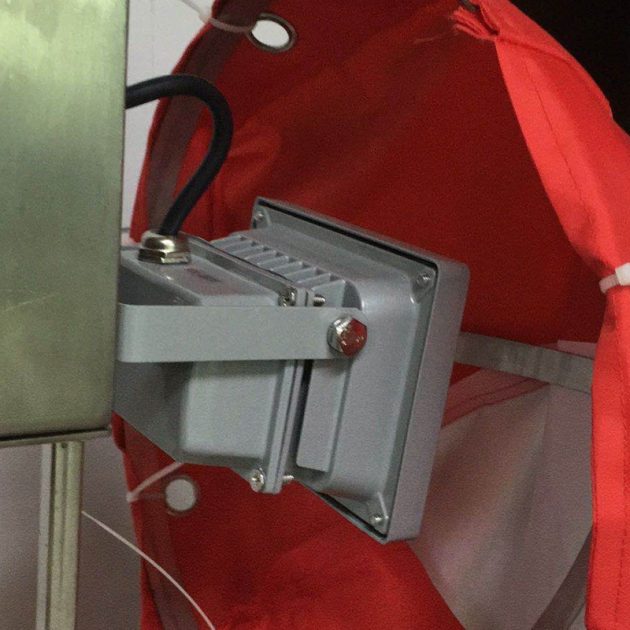

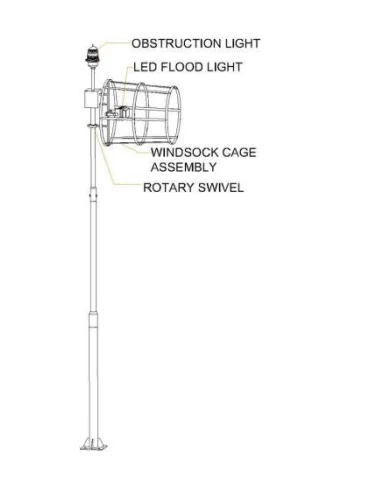

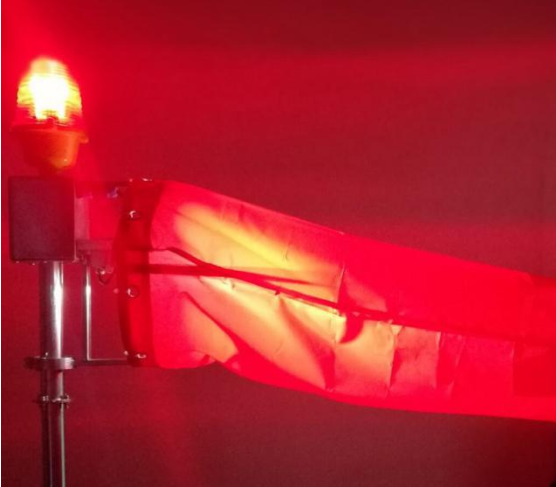

One obstruction light on top, one flood light for illumination
Pole height is customized(1meter, 2meter, 2.5m, 3m, 4m, 5m…)

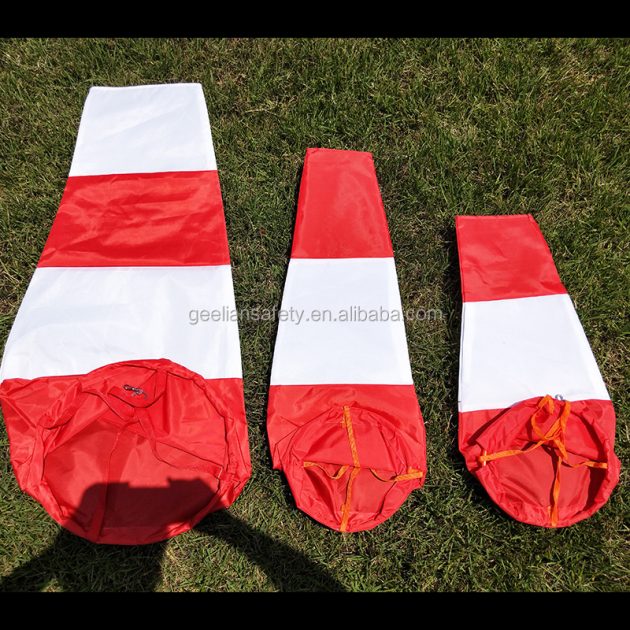

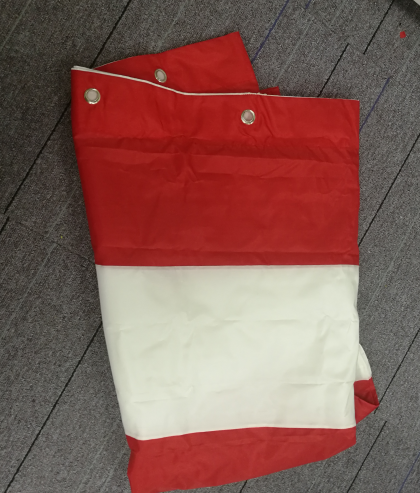

Windsock color is: orange(Nylon), red/white(PVC)
Windsock dimension:
Pole height:< 4m, Length: 1.2m, big diameter: 300mm, small diameter: 150mm
Pole height: 4m-6m, Length: 2.4m, big diameter: 600mm, small diameter: 300mm
Pole height: > 6m, Length: 3.6m, big diameter: 900mm, small diameter: 450mm
Other size is customized.
Frangible coupling is optional
Relate items :
Typical Application
Marine Buoy—Marine cage Aquaculture
Sea ports or docks—Ocean Engineering
Aviation Obstruction marking—Iron Tower / Chimneys
High building—Barricade Marker
Fence Warning—On-construction Warning
Mining Site Marking—Hazard Warning
Wind Power Generators—Security Lighting
Road Warning—Vehicle Warning
Airport Night Navigation—Airfield Perimeter Lighting
